Model: HCH0027-1001/1013
Material: Pure Copper
Copper Content: ≥99.9%
Surface: Tin-Plated
Application:
The Pin-Type Bare Terminal is designed for efficient and reliable electrical connections. Made from high-purity copper with a tin-plated finish, it offers superior conductivity and resistance to oxidation, ensuring durability and longevity. This terminal is particularly suited for applications requiring quick and secure wire terminations. It is widely used in industrial automation, electrical installations, and automotive wiring systems. The design allows for easy connection and disconnection without soldering, enabling convenient maintenance and system upgrades.

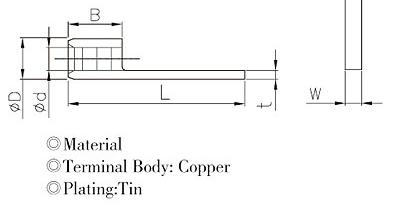

| PART NO | ITEM NO | DIMENSIONS | |||||
| W | D | d | T | B | L | ||
| HCH0027-1001 | TPIN1.25F-10.0/3.0 | 3.0 | 3.4 | 1.7 | 0.75 | 4.5 | 14.50 |
| HCH0027-1002 | TPIN1.25F-13.0/3.0 | 3.0 | 3.4 | 1.7 | 0.75 | 4.5 | 17.50 |
| HCH0027-1003 | TPIN1.25F-14.5/3.0 | 3.0 | 3.4 | 1.7 | 0.75 | 4.5 | 19.00 |
| HCH0027-1004 | TPIN1.25F-18/3.0 | 3.0 | 3.4 | 1.7 | 0.75 | 4.5 | 22.50 |
| HCH0027-1005 | TPIN1.25F-18/2.3 | 2.3 | 3.4 | 1.7 | 0.75 | 4.5 | 22.50 |
| HCH0027-1006 | TPIN2F-8/3.0 | 3.0 | 4.0 | 2.3 | 0.75 | 4.8 | 12.80 |
| HCH0027-1007 | TPIN2F-13/3.0 | 3.0 | 4.0 | 2.3 | 0.75 | 4.8 | 17.80 |
| HCH0027-1008 | TPIN2F-14/3.0 | 3.0 | 4.0 | 2.3 | 0.75 | 4.8 | 18.80 |
| HCH0027-1009 | TPIN2F-18/2.3 | 2.3 | 4.0 | 2.3 | 0.75 | 4.8 | 22.80 |
| HCH0027-1010 | TPIN2F-18/3.0 | 3.0 | 4.0 | 2.3 | 0.75 | 4.8 | 22.80 |
| HCH0027-1011 | TPIN5.5F-14/3.0 | 3.0 | 5.6 | 3.5 | 1.0 | 6.8 | 20.80 |
| HCH0027-1012 | TPIN5.5F-18/3.0 | 3.0 | 5.6 | 3.5 | 1.0 | 6.8 | 24.80 |
| HCH0027-1013 | TPIN5.5F-18/2.3 | 2.3 | 5.6 | 3.5 | 1.0 | 6.8 | 24.80 |
